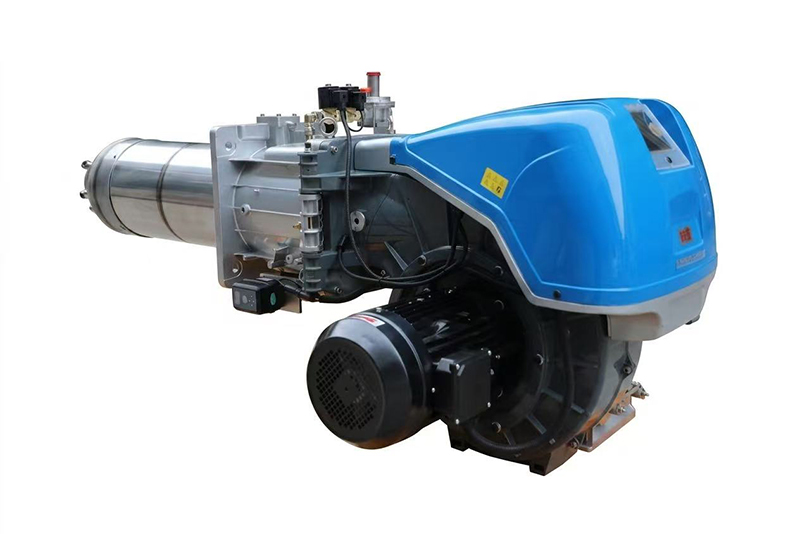

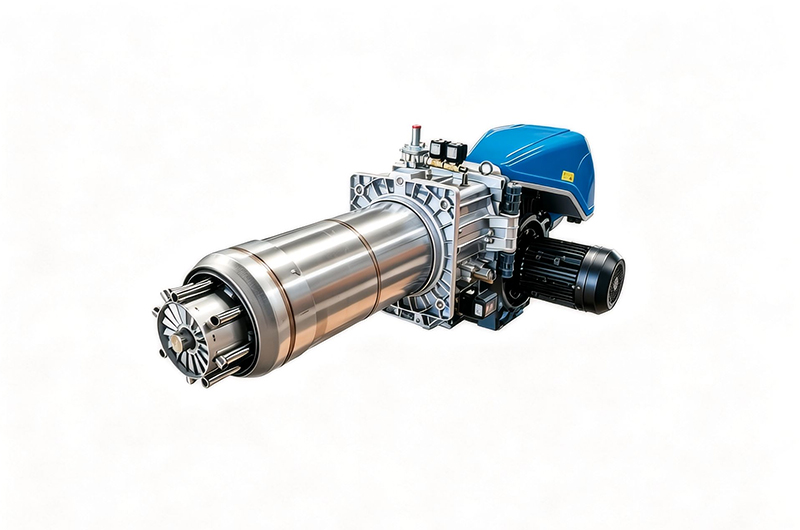

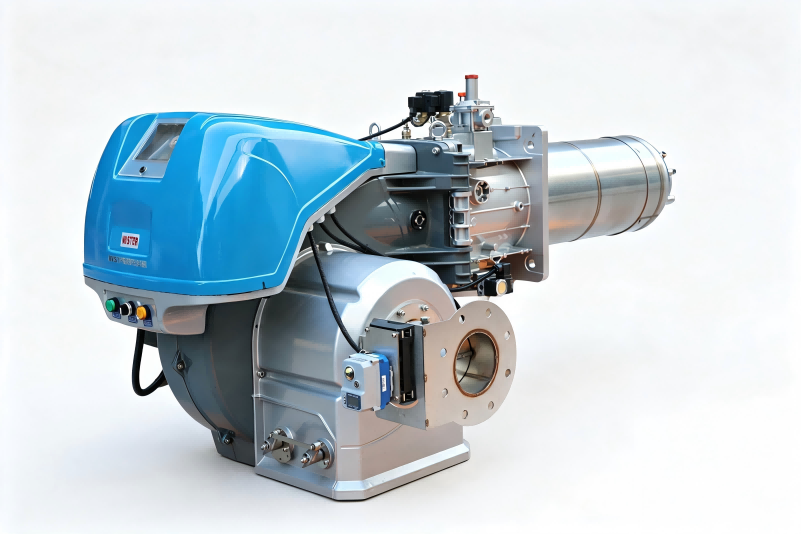

WST-QEF-2.8 Integrated Low-NOx Gas Burner (for 4-ton boilers)

Applicable Equipment: 4-ton steam boilers, hot water boilers, thermal oil heaters, hot air furnaces

Fuel Compatibility: Natural gas, liquefied petroleum gas (LPG), town gas, biogas

Thermal Power: 2.8MW (approx. 2,400,000 kcal/h), matching standard heat load of 4-ton boilers

Control Mode: Modulating / two-stage control, supporting remote PLC communication and MODBUS protocol

Low-NOx Performance: NOₓ emission ≤30mg/m³, meeting ultra-low emission environmental standards

Key Structure (Integrated Design):

Blower, gas valve train and combustion head integrated in one unit, compact installation and easy commissioning

Equipped with metal fiber / porous media burner head, uniform short flame and stable heat load

Integrated DUNGS gas valve train, pressure switches, UV flame detection, flame failure protection and fault self-diagnosis

Key Features:

Ultra-low NOx emissions, compliant with the latest national and local environmental regulations

Integrated design eliminates the need for separate blower installation, greatly reducing on-site modification work

Full premix / staged combustion, thermal efficiency ≥99%, lower energy consumption

Fully automatic closed-loop control with multiple safety interlocks, stable and reliable operation
